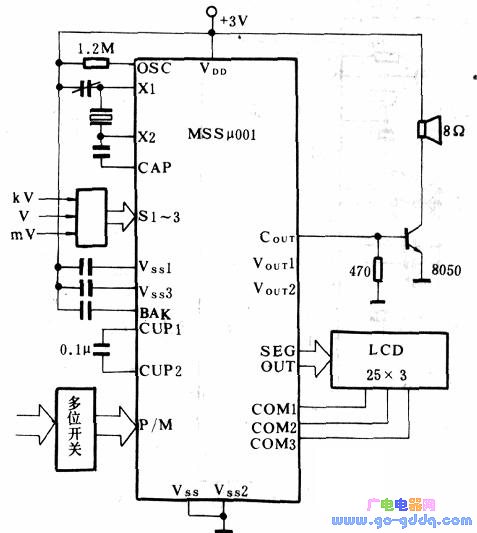

With the MSSμ001 module, you can easily convert a standard digital voltmeter into a voice-enabled one. The diagram below shows the circuit principle of this enhanced digital voltmeter. The original LCD signal is fed into the MSSμ001 through a multi-position switch. This allows the measurement results to be displayed either on the screen or in audio format, making it both convenient and practical for users who prefer auditory feedback.

This upgrade not only improves usability but also makes the device more accessible for individuals with visual impairments. The voice output feature ensures that readings are clearly communicated, reducing the chance of misinterpretation. Whether used in a professional setting or at home, the combination of visual and auditory outputs provides a more comprehensive user experience. The design is simple yet effective, allowing for easy integration into existing digital meters without requiring major modifications. It's a great example of how small technological enhancements can significantly improve functionality and accessibility.
